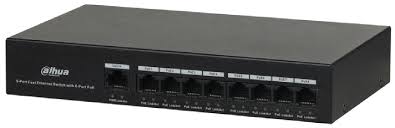

The Dahua DH-PFS3009-8ET-65 is an unmanaged, 9-port desktop Power over Ethernet (PoE) switch designed for small-scale surveillance networks. It provides eight 10/100 Mbps PoE ports and one 10/100 Mbps uplink port, delivering both data and power over a single Ethernet cable.
Technical specifications
- Ports: 8 × 10/100 Mbps PoE ports and 1 × 10/100 Mbps uplink port.
- PoE power consumption: A total power budget of 65W, with each port supplying up to 30W.
- PoE protocols: Supports IEEE 802.3af and IEEE 802.3at standards.
- Performance:
- Switching capacity: 1.8 Gbps.
- Packet forwarding rate: 1.339 Mpps.
- Features:
- MAC auto study and aging, with a 2K MAC address table size.
- MDI/MDIX self-adaption.
- Flow control enabled by default.
- Physical characteristics:
- Dimensions (W×D×H): 205 mm × 115 mm × 35 mm (approx. 8.07 in × 4.53 in × 1.38 in).
- Weight: 0.7 kg (approx. 1.54 lbs).
- Environmental conditions:
- Operating temperature: -10°C to +55°C (14°F–131°F).
- Operating humidity: 10%–90%.
