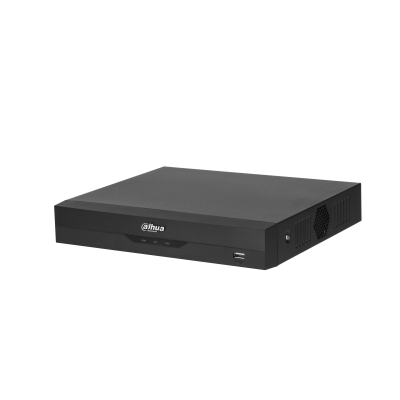

The Dahua DH-XVR5108HS-I3 is an 8-channel WizSense Penta-brid Digital Video Recorder (DVR). It is designed for use in various security applications, including residential, retail, and commercial properties. The "Penta-brid" feature means it can work with multiple types of camera inputs: HDCVI, AHD, TVI, CVBS, and IP cameras.
Key features
- WizSense AI Technology: WizSense is Dahua's line of AI-powered products that uses independent AI chips and a deep learning algorithm. This technology enables the DVR to focus on human and vehicle targets with high accuracy, reducing false alarms.
- SMD Plus: Supports up to 8 channels of Smart Motion Detection (SMD) Plus, which can filter out false alarms caused by things like leaves and rain.
- Face Recognition: Features 1 channel for human face recognition and can manage up to 10 face databases with 10,000 images total.
- Perimeter Protection: Provides up to 2 channels of perimeter protection with tripwire and intrusion detection.
- Camera and bandwidth support:
- Analog channels: Supports up to 8 analog cameras with a maximum resolution of 5MP (for HDCVI/TVI/AHD) or 1080P/720P.
- IP channels: Allows for up to 12 IP camera inputs, with each channel supporting up to 6MP. The incoming bandwidth is a maximum of 64 Mbps.
- Video and storage:
- Compression: Uses H.265+/H.265 dual-stream video compression, which can reduce bitrate and storage requirements by up to 90% compared to H.264.
- Recording: Can record 5MP-N at up to 10fps or 4MP-N/1080p at up to 15fps on all analog channels.
- Hard drive: Features one SATA port that can support a hard disk drive (HDD) up to 10TB. Note that some variants, like the XVR5108HS-I3(1T)=V3.0-SSD1T, may come with an internal 1TB SSD.
- Remote monitoring: Supports remote access via PC and mobile devices using the Dahua DMSS app.
- Other features: Includes Internet of Things (IoT) and Point-of-Sale (POS) capabilities.
